Rapid Report Generation for the System Administrator

Using the Snort database as an example, I will show you how to use HTSQL as a tool to simplify generation of reports and dashboards.

You can view the demo at http://htsql.org/gallery/snort/index.html

Introduction

• Getting data into databases is easy.
• Getting meaningful data out is hard.
• Reporting infrastructure can get very complex. My previous employer had 4 full time employees working on a unified reporting system for 2500 network devices. Every time we introduced a new device or service, reporting was at least 50% of development time.

What's so Special about Snort Anyway

• Snort is the most popular Open Source IDS.
• In most situations Snort is most useful when logging alerts to a database.
• The Snort database is complicated enough that writing an application is time consuming.
• The HTSQL principles shown will carry over to other apps that report to a database (jrtg, syslog-ng/rsyslog, FreeRadius, or custom applications).

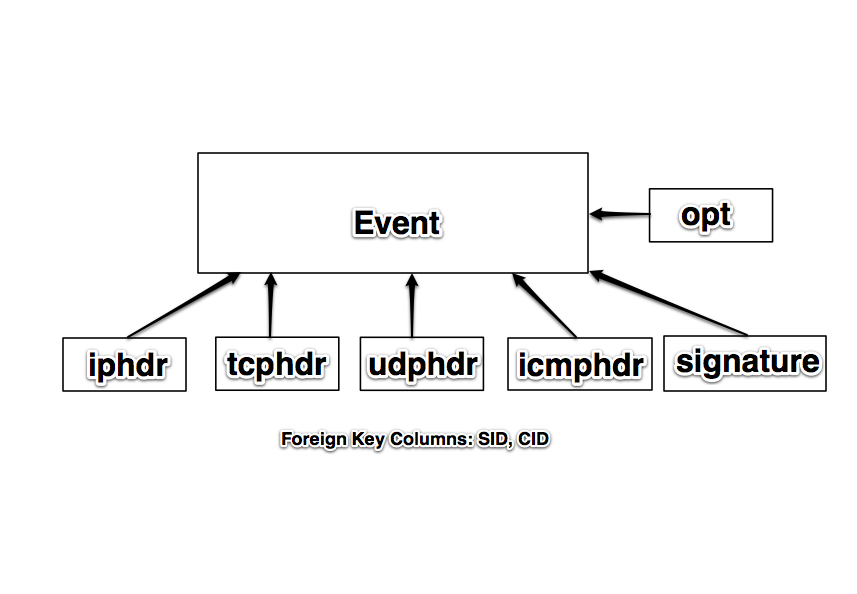

The (Simplified) Snort DB Schema

What is HTSQL?

• In its most basic form, HTSQL is a web gateway to a relational database.
• HTSQL is a sophisticated query language.
• In a nutshell, HTSQL takes a specially formatted URL, translates it to SQL statements, and then returns formatted results from the database.

HTSQL Example

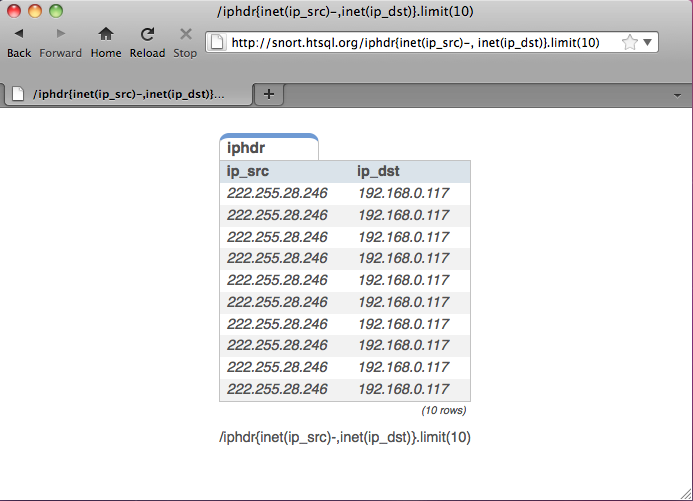

• An HTSQL query that returns the source and destination IPs from the last 10 events sorted by source:



HTSQL Example

/iphdr{inet(ip_src)-, inet(ip_dst)}.limit(10)

Translated SQL:

SELECT ('0.0.0.0'::INET + "iphdr"."ip_src"),
       ('0.0.0.0'::INET + "iphdr"."ip_dst")
FROM "public"."iphdr" AS "iphdr"
ORDER BY 1 DESC, "iphdr"."sid" ASC, "iphdr"."cid" ASC
LIMIT 10

What can HTSQL do for you?

• HTSQL makes sharing data very easy. For example, a business analyst can email an HTSQL query to a DBA to show what data is needed for an application or report.
• HTSQL queries can be bookmarked, linked on a web page, or shared via IM. Since the query is a URL, you can do anything you would normally do with a URL.
• Less technical users can master the basics of HTSQL in a few hours. As we say: "Write a user a query and they will go away for a day. Teach them to query and they will go away."
• Quickly and easily create dashboards and mashups using HTRAF.
• At Prometheus, HTSQL powers our RexDB application. RexDB is used by many universities to access/store information about families with Autism.

The Nitty Gritty

• The most common useage of HTSQL is as a WSGI web service listening to an unprivileged TCP port. The service will respond to anything that can send an HTTP GET request.
• If you use Python, you can import HTSQL directly into your scripts.
• With Perl, you can use LWP.
• With the shell, you can use curl or wget.

The Nitty Gritty

Python using HTSQL directly:

from htsql import HTSQL
from htsql.request import produce
htsql = HTSQL('pgsql://user:pw@localhost:5432/snort')
with htsql:
    for row in produce('/signature{sig_name}'):
        print "Signature: " + row[0]

The Nitty Gritty

Bash with curl:

IFS=$'\n'
HTSQL='http://snort.htsql.org/signature\{sig_name\}/:csv'
for line in $(curl -s $HTSQL | tr '\r\n' '\n')
do
    echo "Signature: $line"
done

The Nitty Gritty

Perl using LWP:

my $server = 'http://snort.htsql.org';
my $htsql = '/signature{sig_name}/:csv';
use LWP::Simple;
my $results = get $server . $htsql;

@results = split(/\r\n/, $results);

foreach $row (@results)
{
    print "Signature: $row\n";
}

The Nitty Gritty

Partial Output:

Signature: PSNG_UDP_PORTSCAN
Signature: (http_inspect) NON-RFC DEFINED CHAR
Signature: (http_inspect) U ENCODING
Signature: (http_inspect) OVERSIZE REQUEST-URI DIRECTORY
Signature: PSNG_UDP_DISTRIBUTED_PORTSCAN

Insta-Blacklist Example

$server='http://snort.htsql.org';
$htsql='/distinct(event{inet(iphdr.ip_src)}
?signature.sig_priority=1)/:csv';

use LWP::Simple;

$result = get $server . $htsql;
@result = split(/\r\n/, $result);

shift(@result); #get rid of the column names

foreach $ip (@result)
{
    print "Blocking $ip\n";
    system("ipfw add deny all from $ip to any");
}

Brief HTSQL tutorial

• The easiest HTSQL query is to get the contents of a table:

Display the iphdr table from the snort DB:

/iphdr

Brief HTSQL tutorial

• It's much better if you can only select certain columns in the table. This is done with the squiggly brackets { and }

/iphdr{ip_src, ip_dst}

• Note that Snort stores IP addresses as a 32 bit signed interger. HTSQL can convert that to the familiar dotted quad notation with the inet() function.

/iphdr{inet(ip_src), inet(ip_dst)}

• Data can be sorted by adding a + or - after the column.

/iphdr{inet(ip_src)-, inet(ip_dst)}

Brief HTSQL tutorial

• HTSQL allows you to filter data. A filter goes at the end of the {} selector and is seperated with the ?

/iphdr{inet(ip_dst)}?inet(ip_src)='216.243.150.122'

• Filter operators include, =, >, <, >=, <=, and ~
• Filters can be combined with AND ( & ) and OR ( | )

/tcphdr{tcp_dport}?tcp_dport='21'|tcp_dport='139'

• The ! operator is used for logical negation.

/tcphdr{tcp_dport}?tcp_dport!='21'

Brief HTSQL tutorial

• Databases aren't very useful if you can't join data from different tables based on foreign key constraints. All you have to do is put tablename.column in the {} selector or in your filter.

/event{signature.sig_name}?cid='1234'

• Multiple tables can be joined:

/tcphdr{tcp_sport, inet(event.iphdr.ip_src)}?cid='1234'

Brief HTSQL tutorial

• Besides the inet() function, HTSQL includes functions to count and to return distinct rows:

/count(iphdr?inet(ip_src)='10.90.90.91')

/distinct(iphdr{inet(ip_src)})

• You can also limit rows by placing .limit(x) after the selector.

/event.limit(10)

• You can pretty up your output by putting :as after a column selection

/iphdr{inet(ip_src) :as 'IP Source'}

Formatters

• HTSQL can output data in several different formats.
• HTML is the most common.
• You can also output data in JSON, CSV, and TXT formats.
• Select the formatter by adding /:<formatter> at the end of the query.
• /event.limit(10)/:JSON will return the query in JSON format.
• If you select the :TXT formatter, HTSQL will show you the SQL it generates.

Learning Curve

• HTSQL does have a learning curve.
• If you know your database well, the curve is small.
• If you don't know your database very well, the curve will be larger.
• It took me about 2 days to really begin to grasp HTSQL at an intermediate level. A few hours will get you going as a beginner.
• Help is available on the mailing list and IRC channel.
• htsql.org has documentation and examples.

Licensing and Database Support

• HTSQL is dual licensed.
• If you want to use it with a commercial database you have to give us money.
• HTSQL is free for use on open source databases.
• HTSQL officially supports: PostgreSQL, MySQL, SQLITE, Oracle, and Microsoft SQL Server.

Installation

• The latest version is always found on bitbucket.
• Also found in the FreeBSD ports tree, databases/py-htsql

Running HTSQL

• HTSQL Requires no root privileges.
• It can run directly as a WSGI server

/usr/local/bin/htsql-ctl server pgsql://user:pw@localhost:5432/snort

• The HTSQL shell is a CLI and is very useful for development.

/usr/local/bin/htsql-ctl shell pgsql://user:pw@localhost:5432/snort

HTSQL Security

• HTSQL inherits whatever permission you give to the role it uses to log into the database.
• If you are running HTSQL as a WSGI app, you will need a proxy server to add things like SSL, or authentication. Varnish or Apache's ProxyPass are both solutions. We have our demos running behind Varnish.
• The most secure setup possible would be HTSQL accessed through a proxy running with a database role that doesn't allow INSERT, UPDATE, or DELETE and is only allowed to query specific database views.

Development Status

• HTSQL is mature and stable. Some features may still be missing that are due to be added in within the next year.
• HTSQL doesn't support INSERT, UPDATE, or DELETE. SELECT only at the moment.

HTRAF

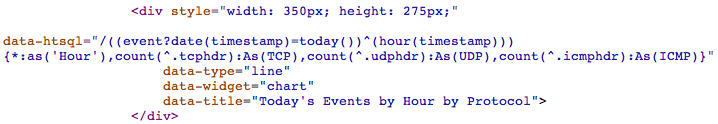

• HTRAF is the HTSQL Rapid Application Framework.
• HTRAF is a client side Javascript library that can run and format HTSQL queries into pretty graphs and tables.
• HTRAF makes building dashboards with HTSQL extremely easy.
• HTRAF is released uder the MIT/GPL license.

HTRAF Development Status

• HTRAF is quite functional.
• HTRAF does one thing very well, which is formatting HTSQL queries.

Snort Dashboard Demo

http://htsql.org/gallery/snort/index.html

Conclusion

• HTSQL is a mature, robust, and stable database query language.
• HTSQL is free for use with Open Source databases such as MySQL and PostgreSQL.
• HTSQL and HTRAF can replace thousands of lines of code in lower level languages.

Questions?

Questions?

• Be sure to check out the reference and tutorial at htsql.org.
• You can always find the latest version of HTSQL on bitbucket: https://bitbucket.org/prometheus/htsql/overview
• The Snort dashboard is also on bitbucket: https://bitbucket.org/prometheus/htsql-snort/overview
• We also live on IRC. Check out #htsql on freenode.
• Subscribe to the mailing list, http://lists.htsql.org
