Advanced Query Construction using HTSQL

HTSQL is a high-level navigational query language and analytical toolkit for relational databases. It is written by Kirill Simonov and Clark Evans in the Python language. HTSQL works with SQLite, PostgreSQL, MySQL, Oracle, and Microsoft SQL Server. HTSQL was created to support data analysts.

Presenter:	Clark C. Evans, Prometheus Research, LLC
Date:	Sept 16, 2011
Location:	PgOpen US 2011, Chicago, IL

What is HTSQL?

a web gateway for delational databases
a navigational query language
a complement to ORMs for reporting
a way to describe and socially share data-sets
a data access tool for accidental progammers

HTSQL is a query language for answering business inquiries, quickly & correctly, the first time through.

More Technically

Interactive Dashboard in Minutes

Dashboard: Screenshot

Dashboard: Source Code

Why HTSQL?

We wrote HTSQL to enable Data Analysts to self-serve both simple and complex data questions without having to spend time in a confessional booth for SQL mishaps.

Technically, something like an ORM, but sharable via the web and focused on complex reporting needs rather than CRUD operations.

Socially, a mechanism where business analysts could give working queries to the development staff, rather than the other way around.

In Need of a Shared Language

data analyst vs programmer
different reference documents
different language used
confusion on data meaning

Collaborative Work Groups

shared language among team members
queries are emailed & tweaked
test cases include live queries
queries are concrete evidence

The Accidental Programmer

SEQUEL was introduced in 1974 as "a query facility oriented toward users who are not computer specialists."

"[T]here is also a large class of users who, while they are not computer specialists, would be willing to learn to interact with a computer in a reasonably high-level, non-procedural query language. Examples of such users are accountants, engineers, architects, and urban planners. It is for this class of users that SEQUEL is intended."

D.Chamberlin, R.F. Boyce, SEQUEL: A Structured English Query Language. Proc. ACM SIGFIDET Conference, Ann Arbor, MI, May 1974 (Page 258)

Relational Algebra is a Poor Fit

poor choice for elementary operations
difficult encoding of business inquiries
simple cases pay price of extreme flexibility
easy to write incorrect

queries & not know it

What is Navigational Model?

Let's use entity relationships as navigation, and build query language around this principle.

recurrent idea from CODASYL, OODBMS, to ORMs
intuitive mapping from business inquiries
automate tedious constructs (joins, casts)
keep collection based processing
keep predicate logic & aggregations
keep projections, but as separate operator

Theory follows practice.

Example University Schema

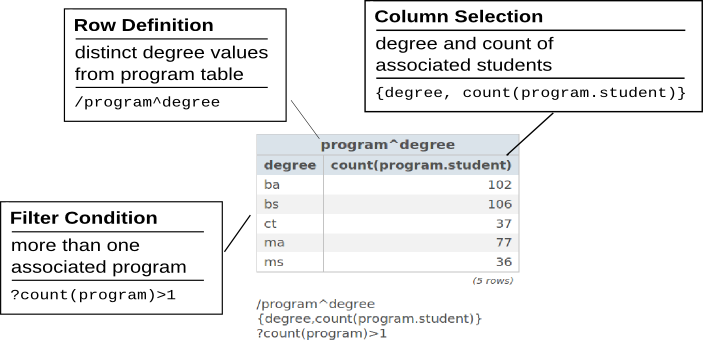

Anatomy of a Query

SQL conflates Rows & Columns

"Please list departments; for each department,: show the corresponding school's campus."

SELECT d.code, d.name, s.campus
FROM ad.department AS d
LEFT JOIN ad.school AS s
       ON (d.school_code = s.code);

The business inquiry asks for a specific set of rows, and then correlated columns. The SQL encoding returns a subset of a cross product, making it difficult to ensure what each row represents. The FROM clause doesn't just pick rows, it also plays and an auxiliary role in choosing columns.

Keep Row Definition Separate

"Please list departments; for each department,: the show the corresponding school's campus."

/department{code, name, school.campus}

The navigational translation separates the row definition from the column selection. The linking is implicit, and correct. The encoded query can be read aloud as a verbal inquiry.

SQL Conflates Filters & Links

"For each department, return the department's: name and number of courses having more than 3 credit hours."

SELECT d.name, COUNT(SELECT TRUE FROM ad.course AS c
                     WHERE c.department_code = d.code
                       AND c.credits > 3  )
FROM ad.department AS d;

For the SQL encoding of this inquiry we use a subquery to avoid row and column conflation. However, WHERE clause in the subquery conflates logic filter with the glue linking department and course.

Optimized SQL is Less Clear

"For each department, return the department's: name and number of courses having more than 3 credit hours."

SELECT d.name, count(c)
FROM ad.department AS d
LEFT JOIN ad.course AS c
       ON (c.department_code = d.code
           AND c.credits > 3)
GROUP BY d.name;

To optimize, the subquery is replaced by a GROUP BY projection. This gives us both row/column and link/filter conflation, obfuscating the business inquiry.

Navigational Model Doesn't Conflate

"For each department, return the department's: name and number of courses having more than 3 credit hours."

/department{name, count(course?credits>3)}

The navigational translation keeps the business logic separate from the link and the row definition separate from output columns. The encoded query corresponds to the original inquiry.

Conflating Projection & Aggregation

"How many departments by campus?"

SELECT s.campus, COUNT(d)
FROM ad.school AS s
LEFT JOIN ad.department AS d
  ON (s.code = d.school_code)
WHERE s.campus IS NOT NULL
GROUP by s.campus;

In the schema there isn't a campus table, you have to take distinct values from the school table. In this SQL query its not clear if the GROUP BY is used only to produce an aggregate, you have to examine primary key columns to know for sure.

Keep Projection Separate

"How many departments by campus?"

/(school^campus) {campus, count(school.department)}

In a navigational approach, you first construct the projection explicitly (using ^ operator). Then, you select from it. In this way the aggregation is indicated separately as part of the column selector rather than being confused with the row definition.

For SQL, Complexity is Painful

"For each school with a degree program, return: the school's name, and the average number of high-credit (>3) courses its departments have."

SELECT s.name, o.avg_over_3 FROM ad.school AS s
JOIN ad.program AS p ON (p.school_code = s.code)
LEFT JOIN (
    SELECT d.school_code, AVG(COALESCE(i.over_3,0)) AS avg_over_3
    FROM ad.department d
    LEFT JOIN (
        SELECT c.department_code, COUNT(c) AS over_3
         FROM ad.course AS c WHERE c.credits > 3
         GROUP BY c.department_code
    ) AS i ON (i.department_code = d.code)
    GROUP BY d.school_code
) AS o ON (o.school_code = s.code)
GROUP BY s.name, o.avg_over_3;

Navigation to the Rescue

"For each school with a degree program, return: the school's name, and the average number of high-credit (>3) courses its departments have."

/(school?exists(program))
  {name, avg(department.count(course?credits>3))}

Case Study: RexDB Constraints

RexDB is data management platform to help medical researchers collect, organize, and analyze data sets.
Core hierarchy is family, individual and measure plus dozens of support tables.
One critical task is reporting on a subject's progress though phases of a study and data quality.
We use constraints to check for inconsistencies that may indicate a data quality problem to be investigated.

Case Study: RexDB Constraints

many tabular queries for each report
entities are rows, checks are columns
constraints are TRUE/FALSE/NULL (missing data)
arbitrary subset of entities may be checked
individual constraints can be very complex

Case Study: RexDB Constraints

Since rows & columns are clearly isolated, queries can be composed dynamically. The general template is:

/individual{id, check_1, check_2}?filter

For example, to return males participating in the 'aie' study, executing two completely orthogonal checks, we write:

/individual
 .define(srs_13_pair := !exists(srs ? q3>24 | q1>7),
         adi_sanity := ... )
 {id, adi_sanity, srs_13_pair}
 ? sex='m'&exists(participation.study = 'aie')

How do you use it?

There are several ways you can use HTSQL.

via htsql-ctl command line interpreter
as a Python library /w SQLite in stand-alone programs
as a WSGI service, integrated /w Django for web apps
as a web service /w Ruby on Rails, or anything else

Via Command Line

HTSQL can be used via a command-line interpreter

$ htsql-ctl shell pgsql:htsql_regress
Interactive HTSQL Shell
Type 'help' for more information, 'exit' to quit the shell.

htsql_regress$ /count(student)
 | count(student) |
-+----------------+-
 |            456 |
            (1 row)

Direct use in Python

HTSQL can be used either as a WSGI component, or directly as a data query tool within Python.

>>> from htsql import HTSQL
>>> from htsql.request import produce
>>> htsql = HTSQL('pgsql:htsql_regress')
>>> with htsql:
...     for row in produce('/school'):
...         print row
...

As a Web Service

HTSQL can be included as part of your web service infrastructure: authenticated, cached, proxied, or how ever you wish to have it integrated.

Development Status

HTSQL is quite usable currently, but it may have gaps for a given application. Particular items we'll be addressing in coming months are:

a mechanism to override catalog configuration
a way to add custom commands & formatters
a way to list tables, links, and columns
hierarchical queries & streaming result sets
support for record-based CRUD operations

How do I get it?

Open Community

source code is up on bitbucket
free of charge for PostgreSQL, MySQL, etc.
no restrictions on commercial applications
we are at #htsql on irc.freenode.net

Dual-License & Support

license for use /w commercial database systems
we sell support packages and consulting

Q&A

Please visit our community site, http://htsql.org, our commercial site http://htsql.com, we are best found at #htsql on freenode. The source code is freely available at http://bitbucket.org/prometheus/htsql

Generous support for HTSQL was provided by The Simons Foundation. This material is also based upon work supported by the National Science Foundation under Grant #0944460.
